XTREME TX91L UPS
Extended Runtime for Sizes 3.8kVA, 5kVA, 6kVA, 10kVA
Xtreme Power Conversion

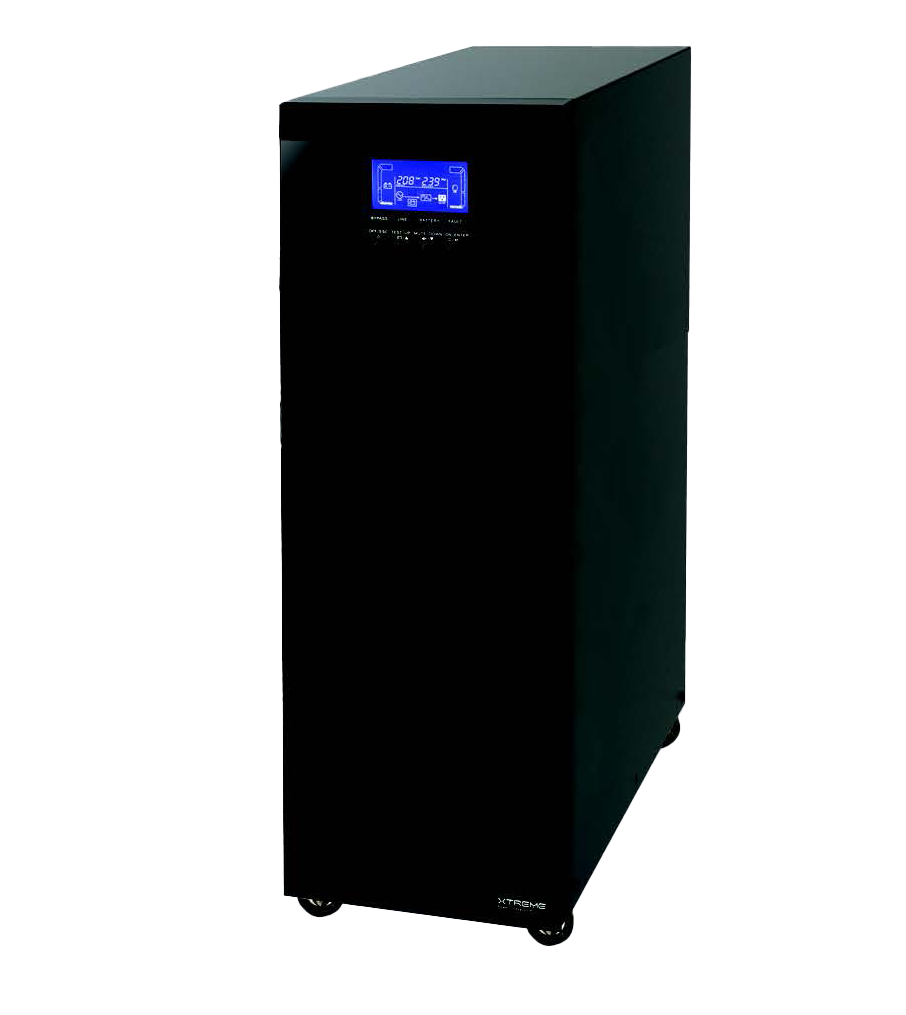

TX91L - Isolated Online Tower UPS
Isolated online UPS with extended runtime capability
Isolated online UPS provides the cleanest power in the most demanding conditions. The TX91L galvanic isolation transformer prevents common mode noise which is left exposed by typical transformerless online designs.
Isolated online applications include retail, industrial environments, laboratories, and any installation with grounding or noise issues.
TX91L provides dual output voltages and optional configurable PDU to meet a wide range of receptacle requirements.
Request Pricing
Build a power solution that is specific for your needs.
Ask Us Any Question!
Product Snapshot
Available models: 3.8kVA/3.8kW, 5kVA/5kW, 6kVA/6kW, 10kVA/10kW
Auto restart
UL1778, cUL, FCC Class A, RoHS, TAA compliant
3 year electronics (USA and Canada)
TX91L includes a powerful 4A charger for use with larger external battery systems
Features
Maintenance bypass
manually transfer critical loads from UPS power to utility power, enabling
Galvanic isolation transformer
eliminates common mode noise and the need to install expensive dedicated circuits and provides power conditioning during normal and bypass operation
Programmable charger
adjustable from 1A-4A via the LCD display
Surge voltage let-through (max)
< 10V normal mode (L-N), < 0.5V common mode (N-G) when subjected to 6kV ANSI/IEEE C62.41 Cat. A
Static switch
automatically transfers output from inverter to the isolated bypass source in the event of an overload or fault
Surge voltage withstand capability
ANSI/IEEE C62.41 Category A & B, 6kV/200 & 500A, 100kHz ringwave
LCD display
monitor vital and precise information
Services and support
FGC provides product support 24 hours a day, 7 days a week. From battery replacement to full UPS service plans, FGC has one of the top service models in the industry.
Snapshot, Tech Specs, PDFs
Download our brochure and user guides to learn more about our products.
Brochure
User Guide
